F200PRO
This sleek and versatile Wi-Fi enabled Dash Cam provides 1080P Full High Definition resolution on both front and rear cams, offering the ultimate surveillance solution for every driver. In addition to the F200 Model, the F200PRO features a 1080P Full HD Rear Cam, Super Night Vision 1.0 and Time Lapse Parking Mode. When connected to the optional GPS Antenna (GPSANT), ADAS and Safety Camera Alerts can also be enabled.
Dual Channel
Recording
Front-facing dashboard camera with rear camera input
High Definition
Video Recording
Clear and crisp video files be it daytime or nighttime
Video Enhancement Technology
High Dynamic Range (HDR)
| Dewarping Image Correction
140° Wide Angle
Field of View
Superb coverage that minimises blind spots at all times
Various Autonomous
Recording Modes
Continuous Recording | Event Recording | Manual Recording | Advanced Parking Surveillance Mode (HWC Required) | Audio/Voice Recording
Built-in WiFi
Control, manage and update the firmware or click, download or delete recorded videos whenever needed via Thinkware™ app
Advanced Driver
Alert System (ADAS)
Lane Departure Warning System
(LDWS) | Forward Collision
Warning System (FCWS) |
Urban Forward Collision System
(uFCWS) | Front Vehicle
Departure Warning (FVDW)
*GPSANT Required
Energy Save
Park Mode
Parking surveillance video recordings of up to 3 times longer
*HWC Required
Time Lapse
Park Mode
Lengthens parking surveillance
recording time
*HWC Required
Super Night Vision
1.0
Enables for enhanced
low light recording
*HWC Required
Comprehensive Driving
Information with GPS
Accurate vehicle speed reading and location tracking for peace of mind
*GPSANT Required
Safety Camera Alerts
Timely Speed, Red Light Cameras and Mobile Speed Zones notifications
*GPSANT Required
High Temperature
Protection (Integrated
Thermal Protection)
Unscathed SD card and video files even in the hottest environment
Fail Safe Recording
Ensures safe storage of recordings in case power gets disconnected after an accident
Memory Card
Format Free 2.0
Supports up to 128GB
PC Viewer
Proprietary THINKWARE
Dash Cam PC Viewer
Warranty
3 Years

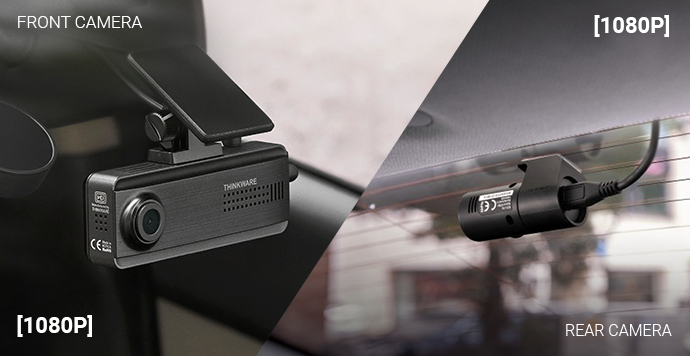

Equipped with CMOS Image Sensors, this dash cam lets you record crisp and clear full 1080p HD front and full 1080p HD rear cam videos be it daytime or nighttime. Even better, it sports a 140-degree wide ange lens view that minimises blind spots across the board.HIGH DEFINITION
VIDEO QUALITY
DUAL
CHANNEL
The F200PRO has a second camera input, allowing the addition of an optional camera.
The second camera options include:
1080P FHD Internal Rear Window Camera
1080P FHD Internal Infrared Cabin Camera
1080P FHD External Rear Camera
1080P FHD External Side Camera
The F200PRO is available as a pack with the Internal Rear Camera included.
View the MODELS tab for optional camera models.
5 CHANNEL
DASH CAM SOLUTION
The optional Thinkware MULTMOD Multiplexer Module transforms Thinkware F200PRO Dash Cam into a five channel dash cam solution. The module connects to the rear input of the dash cam and allows up to four additional cameras to be connected. The recorded footage from the additional cameras merge together to provide a single split screen 1080P FHD video file.
For more information on the Multiplexer Module CLICK HERE
Whether you’re driving under bright sunlight, heading out of a tunnel or getting under the shadow of a tall building, among others, its WDR feature helps get you through a sudden change in frontal light exposure levels that yield excessively bright or dark recordings. WDR does this by getting rid of overly bright spots and correcting colour balance to produce nothing but clear images. Images from videos recorded at nighttime on poorly-lit avenues, streets or roads generally don’t look that lucid. But with this, it’s an entirely different story. It’s armed with enhancement sensors that make brightness, colour and noise cancellation controls possible each time; hence, vivid video recordings of your evening drive. A sudden rise of light exposure brought about by intense sunlight or headlight beams from oncoming vehicles, or poor lighting in a tunnel may give any ordinary dash cam trouble capturing clear images but not THINKWARE dash cams. They come with an automatic light exposure function that controls light exposure levels for crisp footage at all times. STATE-OF-THE-ART
VIDEO ENHANCEMENTS
Wide Dynamic Range (WDR)
Nighttime Picture Quality Correction
Automatic Exposure
Using the latest Image Signal Processing (ISP) technology, which brings real-time image processing to the table, this captures images and records videos of up to 10 times brighter even in low-light environments like dark alleyways or underground parking lots for peace of mind. *Enabled during parking mode when installed with optional HWCSUPER NIGHT VISION
1.0
Automatically activates as soon as the engine starts, this function lets you record videos that are saved in one-minute segments via an auto-looping mechanism. Active Impact Monitoring System, made possible by the built-in three-axis G-Sensor, automatically stores video data 10 seconds prior and after a collision. Similar to how a typical video camera works, you use this mode to record events in front of your vehicle, whether or not it’s in motion, as they happen. Paired with a genuine THINKWARE Hard Wire Cable kit (HWC), this can provide full surveillance capabilities whenever your vehicle is parked. It securely stores 20 seconds of footage (10 seconds before/after) once it detects motion or impact. Not only does it capture vivid videos, but it also records crystal-clear audio. This enables you to enjoy top-tier comprehensive surveillance capabilities to the fullest, too.VARIOUS AUTONOMOUS
RECORDING MODES
Continuous
Recording Mode
Event Recording
Mode
Manual
Recording Mode
Advanced Parking
Surveillance Mode
Audio / Voice
Recording
This feature significantly trims down your power consumption to up to 1/3 less, while giving you as much as 3x longer video recording capability. Serves you well when you’re on a vacation or you need to leave the vehicle unattended for quite some time, the Energy Save Parking Mode instantly puts the dash cam to sleep after capturing 20-second footage of an impact or motion detected by the G-Sensor. *HWC required, sold separately Records at 2 frames per second, the Time Lapse Park Mode makes it possible to reduce the video files’ size; hence, this can capture videos from your parked vehicle up to 16 times longer than other dash cams can. This ensures important clips or images will stay safe in its memory for the long haul. *HWC required, sold separatelyENERGY SAVE
PARK MODETIME LAPSE
PARK MODE
Connect your Thinkware Dash Cam directly via Wifi to your iOS or Android Smartphone using the THINKWARE™ DASH CAM LINK App. View footage, download recordings and manage dash cam settings all from your smartphone. (Use this app for iOS11 or 12)BUILT-IN WIFI
SMARTPHONE APP CONNECTIVITY
THINKWARE DASH CAM LINK smartphone app FREE
Designed for distracted or drowsey drivers, the dash cam will alert you as soon as it senses you’re vehicle leaving the lane while driving at a speed of over 50 kilometres per hour. LDWS alerts you when leaving your lane to help keep any road misfortunes from ruining your trip or compromising you and your passengers’ safety. Keep a safe distance from the vehicle you’re following with the help of FCWS / uFCWS. Equipped with a state-of-the-art road safety warning system, it calculates the real-time distance between your vehicle and the automobile in front of you at a speed of over 30 kilometres per hour (km/h) (in expressways) and under 30 km/h in a busy, congested city. This dash cam issues a three-level early warning to the driver, depending on the danger of the possible collision. When stopped at an intersection or a traffic jam, this dash cam's Front Vehicle Departure Warning (FVDW) intelligent guidance system lets you know when the vehicle in front of you has already started moving, helping you stay attentive each time.Advanced Driver Alert System
*GPSANT required, sold separately
(ADAS)*LDWS
Lane Departure Warning System
FCWS / uFCWS
High Speed / Urban Forward Collision Warning System
FVDW
Front Vehicle Departure Warning
By adding in a genuine THINKWARE Dash Cam GPS Antenna (GPSANT) to the mix, this can keep track of the vehicle’s driving speed and precise location, while identifying ideal routes on the map. The GPS also lets you accurately assess the details of the surrounding area and track your holiday routes for faster travels. In case of a road mishap, it supplies accurate readings of vehicle speed, time of the collision and the impact severity.COMPREHENSIVE DRIVING INFORMATION
WITH GPS
*GPSANT required, sold separately
SAFETY CAMERA
ALERTS
This dash cam comes with various Safety Camera Alert functions aimed at helping drivers abide by traffic rules and regulations to avoid getting ticketed for an infraction. Through the optional GPS antenna (GPSANT), it lets a driver know about a designated average speed camera & mobile speed zones and notifies drivers of upcoming fixed red-light and speed cameras.
*GPSANT required, sold separately
HIGH-TEMPERATURE
PROTECTION SYSTEM
Like all THINKWARE dash cams, this one has a built-in thermal sensor that protects it from getting hounded by the intense heat. Clad in a specially-designed heat discharge construction, the sensor automatically shuts it down to prevent overheating. This allows for the dash cam to thrive even in the harshest Australian weather conditions.
FAIL-SAFE
RECORDING
In case the power gets disconnected after an accident, the supercapacitor-powered Fail-Safe Recording mode kicks in to ensure the safe and uninterrupted storage of any recording in progress at the time of the collision. Rest assured, these valuable files will be securely stored and stay accessible under any circumstances.
Format-free 2.0 Technology helps extend your memory card’s shelf life. Since this utilises the File Allocation Table (FAT) system, there’s no need for you to keep on formatting the card manually. Why? Because this mechanism automatically deletes older and less important files in the memory.FORMAT-FREE 2.0
TECHNOLOGY
The intuitive and simple-to-use interface of THINKWARE DASH CAM allows you an easy and convenient viewing of your recorded videos. Through PC or Mac viewer, you can playback and download recorded videos along with your route history and speed record. You can also change the dash cam settings, format the memory card, or install updates with just a few clicks on the viewer.PROPRIETARY THINKWARE DASH CAM
PC VIEWER
FULL SPECIFICATION
| Number of Channels | 2 |
|---|---|
| Resolution | Full HD 1080P (front) / Full HD 1080P (rear) |
| Frames Per Second | 30 |
| Camera Angle | 140° (front) / 160° (rear) |
| Image Sensor / Camera Type | CMOS 2.0 Megapixel |
| Dimensions / Weight | 98.5 X 34 X 22MM / 54G (front) 56 X 23 X 28MM / 90G (rear) |
| Video Enhancement Technology | |
|
Wide Dynamic Range |
Yes |
|
Night Time Picture Correction |
Yes |
|
Intelligent Automatic Exposure |
Yes |
|
Noise Reduction |
Yes |
|
Advanced Video Clear |
Yes |
|
Super Night Vision 1.0 |
Yes |
|
Super Night Vision 2.0 |
- |
| WiFi | Yes |
| GPS | Yes (requires GPSANT) |
| G-Sensor | Yes |
| Display Screen(Size) | - |
| Super Capacitor / Battery | Super Capacitor |
| High Temperature Protection | Yes |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Power Input | DC 12/24V |
| Power Consumption | 2CH 3.7W / 1CH 2.3W (mean) |
| Voltage Detection / Cut Off | Yes |
| Accessory Socket Power Adaptor | Not Included |
| Hard Wire Kit (HWC) | Included in Dual Camera Kit |
| Mounting Type | Adhesive |
| Dual Save Technology | - |
| Thinkware Connect | |
|
Live View |
- |
|
Geo Fence |
- |
|
Vehicle Location |
- |
|
Impact Notification |
- |
|
Video Storage |
- |
| Camera Alerts | |
|
Fixed Speed Camera |
Yes (requires GPSANT) |
|
Mobile Speed Camera Zone |
Yes (requires GPSANT) |
|
Average Speed Camera Zone |
Yes (requires GPSANT) |
|
Red Light Camera |
Yes (requires GPSANT) |
| Advanced Driver Alert System (ADAS) | |
|
Lane Departure |
Yes (requires GPSANT) |
|
Urban Forward Collision |
Yes (requires GPSANT) |
|
High Speed Forward Collision |
Yes (requires GPSANT) |
|
Front Vehicle Departure |
Yes (requires GPSANT) |
| Recording Modes | |
|
Continuous Loop |
Yes |
|
Impact / Incident |
Yes |
|
Manual |
Yes |
|
Park Motion Detect |
Yes (requires HWC) |
|
Park Impact / Incident |
Yes (requires HWC) |
|
Park Time Lapse |
Yes (requires HWC) |
|
Park Energy Save |
Yes (requires HWC) |
|
Audio / Voice |
Yes |
| Video Format | MP4 |
| Video CODEC | H264 |
| Audio CODEC | AAC |
| Memory Card Capacity / Class | Supports up to 128GB / UH-1 |
| Warranty | 3 Years (on camera hardware, 12 months on micro SD) |
| Country of Manufacture | Korea |
DUAL CAMERA KIT
DASH CAM
REAR CAM
MOUNT
QUICK START GUIDE
MICRO SD CARD
(Capacity Model Dependent)
ADHESIVE CABLE CLIPS
